From the recording microphones to our ears, the better the links in the audio chain, the more musical detail and expression we hear, so using superior cables is essential. Wireworld audio interconnects are designed, tested and manufactured to provide the most sonically transparent path for your music. Their patented DNA HELIX® internal structure consists of parallel strands in layered flat conductors that channel electromagnetic signal energy more efficiently than coaxial and twisted pair cables. They also benefit from COMPOSILEX® 5, a composite insulation technology with lower triboelectric noise than any conventional low loss insulation, including DuPont Teflon®. With upgraded designs and superior materials, Wireworld Series 10 interconnects embody real progress in preserving lifelike tone quality, imaging and dynamic musical expression.
RCA & BALANCED
Platinum Eclipse 10
This is the world’s most refined interconnect cable design built with the ultimate conductor material, Ohno Continuous Cast 7N solid silver. Supremely transparent, with breathtaking dynamics and holographic imaging, Platinum Eclipse 10 provides the closest sound to the ultimate purity of a direct connection. Improvements over the previous Series 8 cable include doubling the number of strand groups, which provides greater low-level resolution, tonal richness and three-dimensionality. Ultra-quiet COMPOSILEX 5 insulation and Grain-Optimized conductors preserve purity and image focus. Patented Carbon fiber RCA plugs add a level of high-tech elegance that makes these exceptional cables look as good as they sound. Upgrade your system with customizable length and termination options of XLR or RCA for your perfect pair of interconnect cables.
Design: Quad DNA Helix
RCA Conductors: 4 (20 strand groups) Gauge: 17AWG | 1sq. mm
XLR Conductors: 4 (20 strand groups) Gauge: 20AWG | 0.5sq. mm
Conductor Material: OCC-7N Solid Silver
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC, XLR: Silver-clad copper alloy
Platinum Eclipse 10
This is the world’s most refined interconnect cable design built with the ultimate conductor material, Ohno Continuous Cast 7N solid silver. Supremely transparent, with breathtaking dynamics and holographic imaging, Platinum Eclipse 10 provides the closest sound to the ultimate purity of a direct connection. Improvements over the previous Series 8 cable include doubling the number of strand groups, which provides greater low-level resolution, tonal richness and three-dimensionality. Ultra-quiet COMPOSILEX 5 insulation and Grain-Optimized conductors preserve purity and image focus. Patented Carbon fiber RCA plugs add a level of high-tech elegance that makes these exceptional cables look as good as they sound. Upgrade your system with customizable length and termination options of XLR or RCA for your perfect pair of interconnect cables.
Design: Quad DNA Helix
RCA Conductors: 4 (20 strand groups) Gauge: 17AWG | 1sq. mm
XLR Conductors: 4 (20 strand groups) Gauge: 20AWG | 0.5sq. mm
Conductor Material: OCC-7N Solid Silver
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC, XLR: Silver-clad copper alloy

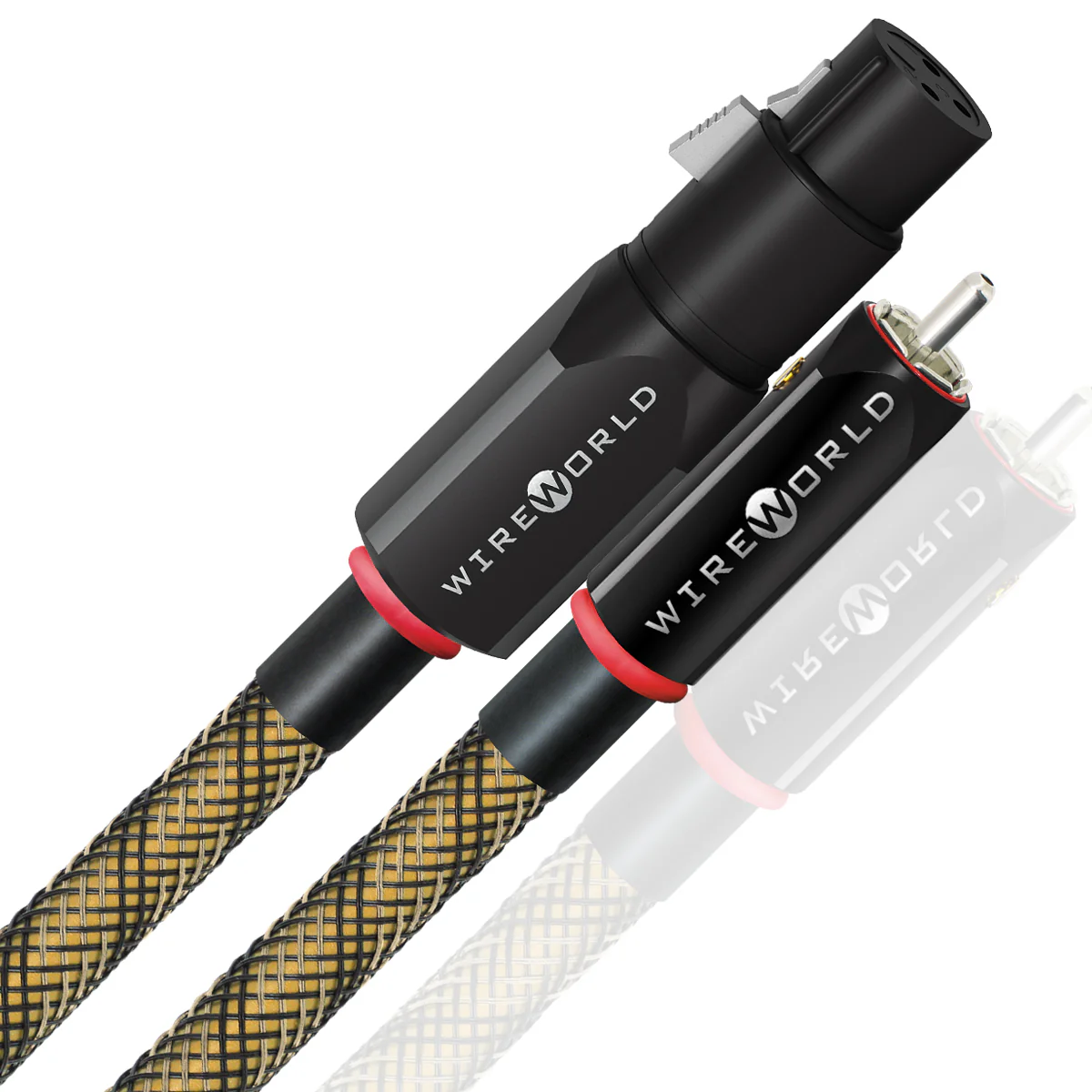

Gold Eclipse 10
With a genuine sense of tactile 3D imaging and enhanced musical expression, Wireworld Gold Eclipse 10 interconnect cables illuminate fine details while preserving the rich tonal colors of acoustic instruments and voices. The Series 10 improvements include ultra-quiet COMPOSILEX 5 insulation and twice as many strand groups as Gold Eclipse 8. Revel in the superior resolution of solid silver conductors in a cable design that maintains the weight and warmth of your favorite music. Upgrade your system with customizable length and termination options of Silver-Tube RCA or XLR connectors.
Design: Quad DNA Helix
RCA Conductors: 4 (16 strand groups) Gauge: 18AWG | 0.8sq. mm
XLR Conductors: 4 (16 strand groups) Gauge: 21AWG | 0.4sq. mm
Conductor Material: 4N Solid Silver
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC, XLR: Silver-clad copper alloy
Gold Eclipse 10
With a genuine sense of tactile 3D imaging and enhanced musical expression, Wireworld Gold Eclipse 10 interconnect cables illuminate fine details while preserving the rich tonal colors of acoustic instruments and voices. The Series 10 improvements include ultra-quiet COMPOSILEX 5 insulation and twice as many strand groups as Gold Eclipse 8. Revel in the superior resolution of solid silver conductors in a cable design that maintains the weight and warmth of your favorite music. Upgrade your system with customizable length and termination options of Silver-Tube RCA or XLR connectors.
Design: Quad DNA Helix
RCA Conductors: 4 (16 strand groups) Gauge: 18AWG | 0.8sq. mm
XLR Conductors: 4 (16 strand groups) Gauge: 21AWG | 0.4sq. mm
Conductor Material: 4N Solid Silver
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC, XLR: Silver-clad copper alloy
Silver Eclipse 10
Just below Gold Eclipse 10 in its preservation of musical details and dimensionality, Silver Eclipse 10 is a cable for listeners who demand high resolution, pristine tone quality and lifelike dynamics from their high-end component systems. Compared to the previous Silver Eclipse 8 cable, this cable has twice as many strand groups, for improved preservation of quiet information and wider dynamic contrasts. The upgraded COMPOSILEX 5 insulation and Grain-Optimized OCC-7N Silver-clad copper conductors provide a quieter background than previous materials. The patented DNA Helix cable design of this cable is instrumental in providing the most lifelike sound that OCC-7N Silver-clad copper can produce. Available with either XLR or RCA cable terminations and in custom lengths, the Wireworld Silver Eclipse 10 embodies excellence in audio signal transmission.
Design: Quad DNA Helix
RCA Conductors: 4 (16 strand groups) Gauge: 18AWG | 0.8sq. mm
XLR Conductors: 4 (16 strand groups) Gauge: 21AWG | 0.4sq. mm
Conductor Material: OCC-7N Silver-clad copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC, XLR: Silver-clad copper alloy
Silver Eclipse 10
Just below Gold Eclipse 10 in its preservation of musical details and dimensionality, Silver Eclipse 10 is a cable for listeners who demand high resolution, pristine tone quality and lifelike dynamics from their high-end component systems. Compared to the previous Silver Eclipse 8 cable, this cable has twice as many strand groups, for improved preservation of quiet information and wider dynamic contrasts. The upgraded COMPOSILEX 5 insulation and Grain-Optimized OCC-7N Silver-clad copper conductors provide a quieter background than previous materials. The patented DNA Helix cable design of this cable is instrumental in providing the most lifelike sound that OCC-7N Silver-clad copper can produce. Available with either XLR or RCA cable terminations and in custom lengths, the Wireworld Silver Eclipse 10 embodies excellence in audio signal transmission.
Design: Quad DNA Helix
RCA Conductors: 4 (16 strand groups) Gauge: 18AWG | 0.8sq. mm
XLR Conductors: 4 (16 strand groups) Gauge: 21AWG | 0.4sq. mm
Conductor Material: OCC-7N Silver-clad copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC, XLR: Silver-clad copper alloy
Eclipse 10
Utilising the same world-class DNA Helix design as its higher priced siblings, Eclipse 10 is the cable for those who refuse to compromise when it comes to preserving the natural timbre and expressive dynamics of instruments and voices. The conductor material in Eclipse 10 is the world’s finest OCC-7N copper. Upgrades over the previous Eclipse 8 cable include twice as many strand groups and ultra-quiet COMPOSILEX 5 insulation. Available with either XLR or RCA cable terminations, the Wireworld Eclipse 10 embodies excellence in audio signal transmission. Custom lengths are available.
Design: Quad DNA Helix
RCA Conductors: 4 (16 strand groups) Gauge: 18AWG | 0.8sq. mm
XLR Conductors: 4 (16 strand groups) Gauge: 21AWG | 0.4sq. mm
Conductor Material: OCC-7N Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC, XLR: Silver-clad copper alloy
Eclipse 10
Utilising the same world-class DNA Helix design as its higher priced siblings, Eclipse 10 is the cable for those who refuse to compromise when it comes to preserving the natural timbre and expressive dynamics of instruments and voices. The conductor material in Eclipse 10 is the world’s finest OCC-7N copper. Upgrades over the previous Eclipse 8 cable include twice as many strand groups and ultra-quiet COMPOSILEX 5 insulation. Available with either XLR or RCA cable terminations, the Wireworld Eclipse 10 embodies excellence in audio signal transmission. Custom lengths are available.
Design: Quad DNA Helix
RCA Conductors: 4 (16 strand groups) Gauge: 18AWG | 0.8sq. mm
XLR Conductors: 4 (16 strand groups) Gauge: 21AWG | 0.4sq. mm
Conductor Material: OCC-7N Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC, XLR: Silver-clad copper alloy
Equinox 10
The Wireworld Equinox 10 interconnect provides amazing value to owners of premium quality AV systems, as it retains the unique sonic advantages and OCC-7N conductors and ultra-quiet COMPOSILEX 5 insulation in the superior DNA Helix design at a price that suits a wide range of high quality AV systems. The outstanding sonic purity and great flexibility of this cable also makes it ideal for professional recording and post production applications. Equinox 10 interconnects are available with XLR or RCA plugs in standard and custom lengths.
Design: Tri DNA Helix
RCA Conductors: 3 (12 strand groups) Gauge: 21AWG | 0.4sq. mm
XLR Conductors: 3 (12 strand groups) Gauge: 24AWG | 0.2sq. mm
Conductor Material: OCC-7N Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC, XLR: Silver-clad copper alloy
Equinox 10
The Wireworld Equinox 10 interconnect provides amazing value to owners of premium quality AV systems, as it retains the unique sonic advantages and OCC-7N conductors and ultra-quiet COMPOSILEX 5 insulation in the superior DNA Helix design at a price that suits a wide range of high quality AV systems. The outstanding sonic purity and great flexibility of this cable also makes it ideal for professional recording and post production applications. Equinox 10 interconnects are available with XLR or RCA plugs in standard and custom lengths.
Design: Tri DNA Helix
RCA Conductors: 3 (12 strand groups) Gauge: 21AWG | 0.4sq. mm
XLR Conductors: 3 (12 strand groups) Gauge: 24AWG | 0.2sq. mm
Conductor Material: OCC-7N Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC, XLR: Silver-clad copper alloy
Oasis 10
Oasis 10’s Tri DNA Helix design advances the art of musical preservation in both interconnect and microphone applications. This extremely flexible and quiet 21 AWG wire reveals musical details and dynamics far beyond the capabilities of previous cables in its price range. Sonic upgrades over Oasis 8 include more strand groups and ultra-quiet COMPOSILEX 5 insulation. It is also the least expensive cable that benefits from Wireworld’s patented Silver-Tube™ RCA plugs, which utilize silver-clad OFC contacts tensioned by a silicone ring to provide the quietest connections of any RCA plugs. Available with XLR or RCA plugs in standard and custom lengths.
Design: Tri DNA Helix
RCA Conductors: 3 (12 strand groups) Gauge: 21AWG | 0.4sq. mm
XLR Conductors: 3 (12 strand groups) Gauge: 24AWG | 0.2sq. mm
Conductor Material: Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC. XLR: Silver-clad copper alloy
Oasis 10
Oasis 10’s Tri DNA Helix design advances the art of musical preservation in both interconnect and microphone applications. This extremely flexible and quiet 21 AWG wire reveals musical details and dynamics far beyond the capabilities of previous cables in its price range. Sonic upgrades over Oasis 8 include more strand groups and ultra-quiet COMPOSILEX 5 insulation. It is also the least expensive cable that benefits from Wireworld’s patented Silver-Tube™ RCA plugs, which utilize silver-clad OFC contacts tensioned by a silicone ring to provide the quietest connections of any RCA plugs. Available with XLR or RCA plugs in standard and custom lengths.
Design: Tri DNA Helix
RCA Conductors: 3 (12 strand groups) Gauge: 21AWG | 0.4sq. mm
XLR Conductors: 3 (12 strand groups) Gauge: 24AWG | 0.2sq. mm
Conductor Material: Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC. XLR: Silver-clad copper alloy

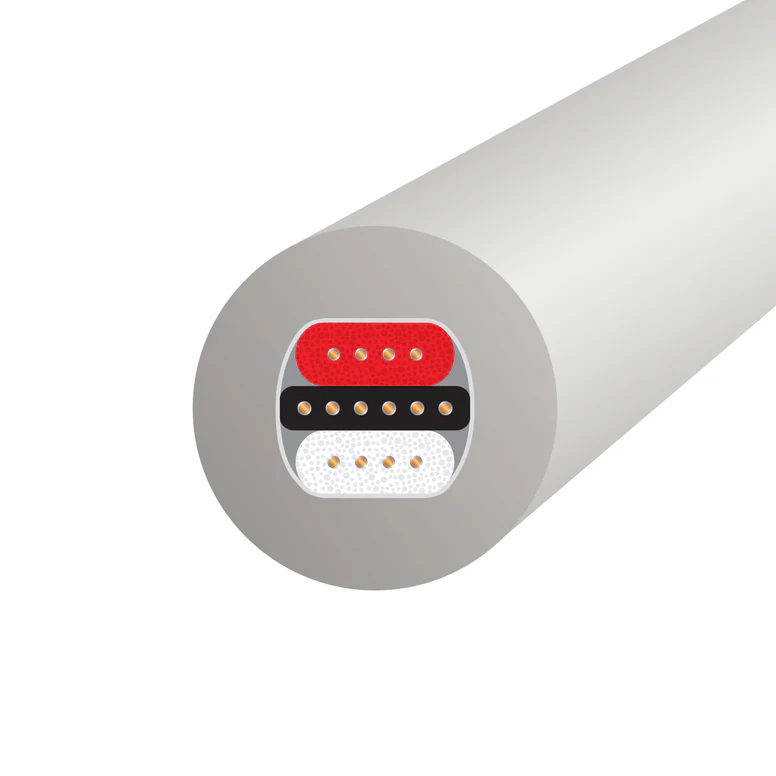

Solstice 10
With a refined version of Wireworld’s patented Tri DNA HELIX design, Solstice 10’s silver-plated Oxygen-Free Copper conductors and COMPOSILEX 5 insulation improve reproduction of musical detail and expression in both RCA and balanced XLR applications. This audio cable features Gold-Tube™ RCA plugs with a smooth firm grip and 24K gold-plated OFC contacts. Available with XLR or RCA plugs in standard and custom lengths.
Design: Tri DNA Helix
RCA Conductors: 3 (13 strand groups) Gauge: 23AWG | 0.26sq. mm
XLR Conductors: 3 (13 strand groups) Gauge: 26AWG | 0.13sq. mm
Conductor Material: Silver-plated Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: 24k Gold plated, XLR: Silver-clad copper alloy
Solstice 10
With a refined version of Wireworld’s patented Tri DNA HELIX design, Solstice 10’s silver-plated Oxygen-Free Copper conductors and COMPOSILEX 5 insulation improve reproduction of musical detail and expression in both RCA and balanced XLR applications. This audio cable features Gold-Tube™ RCA plugs with a smooth firm grip and 24K gold-plated OFC contacts. Available with XLR or RCA plugs in standard and custom lengths.
Design: Tri DNA Helix
RCA Conductors: 3 (13 strand groups) Gauge: 23AWG | 0.26sq. mm
XLR Conductors: 3 (13 strand groups) Gauge: 26AWG | 0.13sq. mm
Conductor Material: Silver-plated Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: 24k Gold plated, XLR: Silver-clad copper alloy
Luna 10
Featuring Oxygen-Free Copper conductors in the patented Tri DNA HELIX design, Luna 10 audio interconnect provides surprising improvements in sonic realism. Crafted with precision, this audiophile cable delivers exceptional imaging and dynamic expression, further enhanced by the COMPOSILEX 5 insulation, which heightens focus and clarity. Available with XLR or RCA plugs in standard and custom lengths.
Design: Tri DNA Helix
RCA Conductors: 3 (13 strand groups) Gauge: 23AWG | 0.26sq. mm
XLR Conductors: 3 (13 strand groups) Gauge: 26AWG | 0.13sq. mm
Conductor Material: Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: 24k Gold plated, XLR: Silver-clad copper alloy
Luna 10
Featuring Oxygen-Free Copper conductors in the patented Tri DNA HELIX design, Luna 10 audio interconnect provides surprising improvements in sonic realism. Crafted with precision, this audiophile cable delivers exceptional imaging and dynamic expression, further enhanced by the COMPOSILEX 5 insulation, which heightens focus and clarity. Available with XLR or RCA plugs in standard and custom lengths.
Design: Tri DNA Helix
RCA Conductors: 3 (13 strand groups) Gauge: 23AWG | 0.26sq. mm
XLR Conductors: 3 (13 strand groups) Gauge: 26AWG | 0.13sq. mm
Conductor Material: Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: 24k Gold plated, XLR: Silver-clad copper alloy
Stream 10
This highly flexible 25-gauge cable utilize Wireworld’s patented DNA Helix conductor geometry with 100% shielding and proprietary COMPOSILEX 3 insulation to improve the fidelity of consumer and professional audio systems. These advanced design features were developed through listening tests that compared prototype cables to virtually loss-free direct connections between components.
Design: DNA Helix
Signal Conductors: Qty: 2 (8 strands) Gauge: 25AWG | 0.16sq. mm
Conductor Material: Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: 24K Gold-plated
Note: RCA – RCA only
Stream 10
This highly flexible 25-gauge cable utilize Wireworld’s patented DNA Helix conductor geometry with 100% shielding and proprietary COMPOSILEX 3 insulation to improve the fidelity of consumer and professional audio systems. These advanced design features were developed through listening tests that compared prototype cables to virtually loss-free direct connections between components.
Design: DNA Helix
Signal Conductors: Qty: 2 (8 strands) Gauge: 25AWG | 0.16sq. mm
Conductor Material: Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: 24K Gold-plated
Note: RCA – RCA only
MINI JACK
Wireworld 3.5mm Jack plugs are ultra light and flexible and ideal for portable digital devices. Nano and Pulse Mini Jack cables employ our patented DNA Helix® design with eight signal conductors – four times as many as standard cables — to channel the electromagnetic signal energy more efficiently, providing greater detail and dynamics. Choose Wireworld for your Mini audio cables.
Nano-Platinum Eclipse
This is the cable for perfectionists with elite reference systems. Supremely transparent, with breathtaking dynamics and holographic imaging, Nano-Platinum Eclipse provides the closest sound to the ultimate purity of a direct connection. Carbon fiber plugs add a level of high tech elegance that make these exceptional cables look as good as they sound.
Design: DNA Helix
Signal Conductors: Qty: 2 (8 strands) Gauge: 27AWG | 0.1sq. mm
Conductor Material: OCC-7N Solid Silver
Insulation: COMPOSILEX 2
Plug Contacts: Silver-clad alloy
Note: Mini to 2 RCAs or Mini to Mini
Nano-Platinum Eclipse
This is the cable for perfectionists with elite reference systems. Supremely transparent, with breathtaking dynamics and holographic imaging, Nano-Platinum Eclipse provides the closest sound to the ultimate purity of a direct connection. Carbon fiber plugs add a level of high tech elegance that make these exceptional cables look as good as they sound.
Design: DNA Helix
Signal Conductors: Qty: 2 (8 strands) Gauge: 27AWG | 0.1sq. mm
Conductor Material: OCC-7N Solid Silver
Insulation: COMPOSILEX 2
Plug Contacts: Silver-clad alloy
Note: Mini to 2 RCAs or Mini to Mini
Nano-Silver Eclipse
Nano-Silver Eclipse is engineered to preserve much more signal energy than any standard cable by utilizing superior conductor material, top quality connectors and cutting edge design. You’ll be amazed at how much more musical detail it lets you hear through your high quality digital device.
Design: DNA Helix
Signal Conductors: Qty: 2 (8 strands) Gauge: 27AWG | 0.1sq. mm
Conductor Material: OCC-7N Silver-clad Copper
Insulation: COMPOSILEX 2
Plug Contacts: Silver-clad alloy
Note: Mini to 2 RCAs or Mini to Mini
Nano-Silver Eclipse
Nano-Silver Eclipse is engineered to preserve much more signal energy than any standard cable by utilizing superior conductor material, top quality connectors and cutting edge design. You’ll be amazed at how much more musical detail it lets you hear through your high quality digital device.
Design: DNA Helix
Signal Conductors: Qty: 2 (8 strands) Gauge: 27AWG | 0.1sq. mm
Conductor Material: OCC-7N Silver-clad Copper
Insulation: COMPOSILEX 2
Plug Contacts: Silver-clad alloy
Note: Mini to 2 RCAs or Mini to Mini
Nano-Eclipse
Utilising the same world-class design as its higher priced siblings, Nano-Eclipse is the cable for those who refuse to compromise when it comes to preserving the natural timbre of instruments and voices. The Eclipse features Wireworld’s unique DNA Helix® cable design with silver-clad OFC plugs for superior contacts.
Design: DNA Helix
Signal Conductors: Qty: 2 (8 strands) Gauge: 27AWG | 0.1sq. mm
Conductor Material: OCC-7N Copper
Insulation: COMPOSILEX 2
Plug Contacts: Silver-clad alloy
Note: Mini to 2 RCAs or Mini to Mini
Nano-Eclipse
Utilising the same world-class design as its higher priced siblings, Nano-Eclipse is the cable for those who refuse to compromise when it comes to preserving the natural timbre of instruments and voices. The Eclipse features Wireworld’s unique DNA Helix® cable design with silver-clad OFC plugs for superior contacts.
Design: DNA Helix
Signal Conductors: Qty: 2 (8 strands) Gauge: 27AWG | 0.1sq. mm
Conductor Material: OCC-7N Copper
Insulation: COMPOSILEX 2
Plug Contacts: Silver-clad alloy
Note: Mini to 2 RCAs or Mini to Mini
iWorld
iWorld utilises standard coaxial conductor geometry, but the mini coaxial cable conductor spacing has been fine tuned to produce superior clarity and dynamic expression. Plugs are Mini Jack male to 2 RCA males and 1.5 meters in length.
Design: Caoxial
Signal Conductors: Qty: 2 Gauge: 25AWG | 0.16sq. mm
Conductor Material: Oxygen-Free Copper
Insulation: HDPE
Plug Contacts: 24K Gold-plated
Note: Mini to 2 RCAs
iWorld
iWorld utilises standard coaxial conductor geometry, but the mini coaxial cable conductor spacing has been fine tuned to produce superior clarity and dynamic expression. Plugs are Mini Jack male to 2 RCA males and 1.5 meters in length.
Design: Caoxial
Signal Conductors: Qty: 2 Gauge: 25AWG | 0.16sq. mm
Conductor Material: Oxygen-Free Copper
Insulation: HDPE
Plug Contacts: 24K Gold-plated
Note: Mini to 2 RCAs
TONEARM
These highly flexible tonearm cables utilize Wireworld’s patented DNA Helix conductor geometry with 100% shielding and proprietary COMPOSILEX® 5 insulation to improve the fidelity of consumer, audiophile and professional turntables. Patented RCA Silver-Tube® plugs provide the quietest connections available. Get the most lifelike sound quality from your vinyl with these superior tonearm turntable cables.
Micro-Platinum Eclipse 10 Tonearm
The world’s finest tonearms have just met their match. Enjoy the quietest background, highest resolution and most complete harmonic structure from your records with a Platinum Eclipse 10 solid silver tonearm cable. Elegant carbon fiber plugs with patented Silver-Tube contacts ensure the quietest possible connections.
Design: Tri DNA Helix
Signal Conductors: 3 (13 strand groups) 26AWG | 0.13sq. mm
Conductor Material: OCC-7N Sold Silver
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC. XLR: Silver-clad copper alloy
Capacitance: XLR – 100pF/m, RCA – 200pF/m standard or 100pF/m Low Cap option
Note: DIN to 2 RCAs, DIN to 2 XLR, RCA to RCA with ground wire
Micro-Platinum Eclipse 10 Tonearm
The world’s finest tonearms have just met their match. Enjoy the quietest background, highest resolution and most complete harmonic structure from your records with a Platinum Eclipse 10 solid silver tonearm cable. Elegant carbon fiber plugs with patented Silver-Tube contacts ensure the quietest possible connections.
Design: Tri DNA Helix
Signal Conductors: 3 (13 strand groups) 26AWG | 0.13sq. mm
Conductor Material: OCC-7N Sold Silver
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC. XLR: Silver-clad copper alloy
Capacitance: XLR – 100pF/m, RCA – 200pF/m standard or 100pF/m Low Cap option
Note: DIN to 2 RCAs, DIN to 2 XLR, RCA to RCA with ground wire
Micro-Silver Eclipse 10 Tonearm
To fully appreciate the beauty of analog audio, a tonearm cable must preserve the finest details while maintaining the sweet tone quality that makes vinyl so enjoyable. Silver Eclipse 10 is a high-end phono cable that features the incomparable DNA HELIX design. That design coupled with OCC-7N Silver-clad copper conductors and ultra-quiet COMPOSILEX 5 insulation enhances the performance of great analog systems.
Design: Tri DNA Helix
Signal Conductors: 3 (13 strand groups) 26AWG | 0.13sq. mm
Conductor Material: OCC-7N Silver-clad Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC, XLR: Silver-clad copper alloy
Capacitance: XLR – 100pF/m, RCA – 200pF/m standard or 100pF/m Low Cap option
Note: DIN to 2 RCAs, DIN to 2 XLR, RCA to RCA with ground wire
Micro-Silver Eclipse 10 Tonearm
To fully appreciate the beauty of analog audio, a tonearm cable must preserve the finest details while maintaining the sweet tone quality that makes vinyl so enjoyable. Silver Eclipse 10 is a high-end phono cable that features the incomparable DNA HELIX design. That design coupled with OCC-7N Silver-clad copper conductors and ultra-quiet COMPOSILEX 5 insulation enhances the performance of great analog systems.
Design: Tri DNA Helix
Signal Conductors: 3 (13 strand groups) 26AWG | 0.13sq. mm
Conductor Material: OCC-7N Silver-clad Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC, XLR: Silver-clad copper alloy
Capacitance: XLR – 100pF/m, RCA – 200pF/m standard or 100pF/m Low Cap option
Note: DIN to 2 RCAs, DIN to 2 XLR, RCA to RCA with ground wire
Micro-Eclipse 10 Tonearm
Meticulously crafted for minimal signal loss, the Micro-Eclipse 10 preserves the nuances and subtleties of vinyl playback, making this high-end, reference tonearm cable an essential component to the finest audiophile turntables. This ultra-pure OCC-7N Copper wire with Wireworld’s proprietary COMPOSILEX 5 insulation transmits the delicate signals from the stylus to the audio system with precision.
Design: Tri DNA Helix
Signal Conductors: 3 (13 strand groups) 26AWG | 0.13sq. mm
Conductor Material: OCC-7N Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC, XLR: Silver-clad copper alloy
Capacitance: XLR – 100pF/m, RCA – 200pF/m standard or 100pF/m Low Cap option
Note: DIN to 2 RCAs, DIN to 2 XLR, RCA to RCA with ground wire
Micro-Eclipse 10 Tonearm
Meticulously crafted for minimal signal loss, the Micro-Eclipse 10 preserves the nuances and subtleties of vinyl playback, making this high-end, reference tonearm cable an essential component to the finest audiophile turntables. This ultra-pure OCC-7N Copper wire with Wireworld’s proprietary COMPOSILEX 5 insulation transmits the delicate signals from the stylus to the audio system with precision.
Design: Tri DNA Helix
Signal Conductors: 3 (13 strand groups) 26AWG | 0.13sq. mm
Conductor Material: OCC-7N Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: Silver-clad OFC, XLR: Silver-clad copper alloy
Capacitance: XLR – 100pF/m, RCA – 200pF/m standard or 100pF/m Low Cap option
Note: DIN to 2 RCAs, DIN to 2 XLR, RCA to RCA with ground wire
Solstice 10 Tonearm
A dramatic upgrade for popularly priced turntable cables, Solstice 10 features the same DNA HELIX design that sets Wireworld cables apart. Silver-plated OFC conductors and COMPOSILEX 5 insulation deliver the smooth dynamic sound of reference quality analog.
Design: Tri DNA Helix
Signal Conductors: 3 (13 strand groups) 26AWG | 0.13sq. mm
Conductor Material: Silver-plated Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: 24k Gold plated, XLR: Silver-clad copper alloy
Capacitance: XLR – 100pF/m, RCA – 200pF/m standard or 100pF/m Low Cap option
Note: DIN to 2 RCAs, DIN to 2 XLR, RCA to RCA with ground wire
Solstice 8 Tonearm
A dramatic upgrade for popularly priced turntable cables, Solstice 10 features the same DNA HELIX design that sets Wireworld cables apart. Silver-plated OFC conductors and COMPOSILEX 5 insulation deliver the smooth dynamic sound of reference quality analog.
Design: Tri DNA Helix
Signal Conductors: 3 (13 strand groups) 26AWG | 0.13sq. mm
Conductor Material: Silver-plated Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: RCA: 24k Gold plated, XLR: Silver-clad copper alloy
Capacitance: XLR – 100pF/m, RCA – 200pF/m standard or 100pF/m Low Cap option
Note: DIN to 2 RCAs, DIN to 2 XLR, RCA to RCA with ground wire
SUBWOOFER
The better the links in the audio chain, the more musical detail and expression we hear. Wireworld single channel subwoofer audio cables are designed, tested and manufactured to provide the deepest, most vibrant and physically satisfying bass from your home theater and music system. Our subwoofer connector cables feature a patented DNA HELIX® design that uses parallel strands in layered flat conductors to channel electromagnetic signal energy more efficiently than other designs, for the most impactful and richly textured bass your sub can produce.
Equinox 10 Subwoofer
The Equinox 10 subwoofer cables provide amazing value to owners of premium quality AV systems. This cable retains the unique performance advantages of Wireworld’s patented DNA Helix conductor geometry and the world’s finest OCC-7N copper conductors at a price that suits a wide range of high-end subwoofers. Sonic benefits include greater low frequency control, texture and extension.
Design: Tri DNA Helix
Signal Conductors: 3 (12 strand groups) Gauge: 21AWG | 0.4sq. mm
Conductor Material: OCC-7N Copper
Insulation: COMPOSILEX 5
Plug Contacts: Silver-clad OFC
Equinox 10 Subwoofer
The Equinox 10 subwoofer cables provide amazing value to owners of premium quality AV systems. This cable retains the unique performance advantages of Wireworld’s patented DNA Helix conductor geometry and the world’s finest OCC-7N copper conductors at a price that suits a wide range of high-end subwoofers. Sonic benefits include greater low frequency control, texture and extension.
Design: Tri DNA Helix
Signal Conductors: 3 (12 strand groups) Gauge: 21AWG | 0.4sq. mm
Conductor Material: OCC-7N Copper
Insulation: COMPOSILEX 5
Plug Contacts: Silver-clad OFC
Oasis 10 Subwoofer
The Oasis 10 subwoofer cable’s superior Tri DNA Helix design and patented Silver-Tube™ plugs improve bass impact and dynamics. This extremely flexible and quiet 21 gauge wire reveals musical details far beyond the capabilities of previous cables in its price range. Patented Silver-Tube RCA plugs provide additional improvements in pitch definition and extension.
Design: Tri DNA Helix
Signal Conductors: 3 (12 strand groups) Gauge: 21AWG | 0.4sq. mm
Conductor Material: Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: Silver-clad OFC
Oasis 10 Subwoofer
The Oasis 10 subwoofer cable’s superior Tri DNA Helix design and patented Silver-Tube™ plugs improve bass impact and dynamics. This extremely flexible and quiet 21 gauge wire reveals musical details far beyond the capabilities of previous cables in its price range. Patented Silver-Tube RCA plugs provide additional improvements in pitch definition and extension.
Design: Tri DNA Helix
Signal Conductors: 3 (12 strand groups) Gauge: 21AWG | 0.4sq. mm
Conductor Material: Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: Silver-clad OFC
Solstice 10 Subwoofer
Ideal for smaller systems and custom installations, Solstice 10 subwoofer wire provides great durability and ease of use, along with superb sound quality. Upgraded Tri DNA HELIX design reduces eddy current losses for vibrant bass textures that pull you into the music. Gold Tube RCA plugs have a smooth firm grip and the highest conductivity in their class.
Design: Tri DNA Helix
Signal Conductors: 3 (13 strand groups) Gauge: 23AWG | 0.26sq. mm
Conductor Material: Silver-plated Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: 24k Gold plated
Note: Patented Silver-Tube RCA Plugs
Solstice 10 Subwoofer
Ideal for smaller systems and custom installations, Solstice 10 subwoofer wire provides great durability and ease of use, along with superb sound quality. Upgraded Tri DNA HELIX design reduces eddy current losses for vibrant bass textures that pull you into the music. Gold Tube RCA plugs have a smooth firm grip and the highest conductivity in their class.
Design: Tri DNA Helix
Signal Conductors: 3 (13 strand groups) Gauge: 23AWG | 0.26sq. mm
Conductor Material: Silver-plated Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: 24k Gold plated
Note: Patented Silver-Tube RCA Plugs
Luna 10 Subwoofer
With Oxygen-Free Copper conductors in an upgraded Tri DNA HELIX cable design, Luna 10 high-end subwoofer cable provides improved bass impact and dynamics. Gold Tube RCA plugs have a smooth firm grip and the highest conductivity in their class.
Design: Tri DNA Helix
Signal Conductors: 3 (13 strand groups) Gauge: 23AWG | 0.26sq. mm
Conductor Material: Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: 24k Gold plated
Luna 10 Subwoofer
With Oxygen-Free Copper conductors in an upgraded Tri DNA HELIX cable design, Luna 10 high-end subwoofer cable provides improved bass impact and dynamics. Gold Tube RCA plugs have a smooth firm grip and the highest conductivity in their class.
Design: Tri DNA Helix
Signal Conductors: 3 (13 strand groups) Gauge: 23AWG | 0.26sq. mm
Conductor Material: Oxygen-Free Copper
Insulation: COMPOSILEX 5
Plug Contacts: 24k Gold plated
